ChromatGui Class Reference

The visual appearance of a ChromatData. More...

#include <featuregui.h>

Inheritance diagram for ChromatGui:

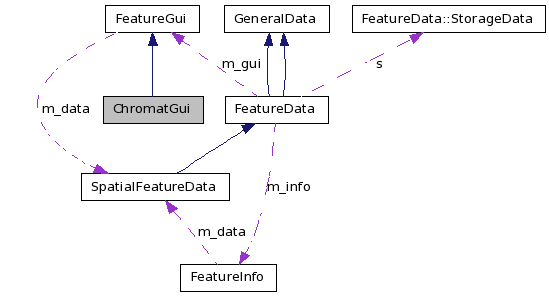

[legend]Collaboration diagram for ChromatGui:

[legend]List of all members.

Public Member Functions
	ChromatGui (SpatialFeatureData *data)
void	paintMe (QPainter *p, TR_PIX x_pix, TR_PIX y_pix, TR_DNA x1_dna, TR_DNA x2_dna, double width, int height, int center)
Private Member Functions
ChromatData *	chromatData ()

---

Detailed Description

The visual appearance of a ChromatData.

Definition at line 108 of file featuregui.h.

---

Constructor & Destructor Documentation

ChromatGui::ChromatGui

(

SpatialFeatureData *

data

)

Definition at line 158 of file featuregui.cpp.

                                                : FeatureGui( data )
{

}

---

Member Function Documentation

void ChromatGui::paintMe	(	QPainter *	p,
		TR_PIX	x_pix,
		TR_PIX	y_pix,
		TR_DNA	x1_dna,
		TR_DNA	x2_dna,
		double	width,
		int	height,
		int	center
	)			[virtual]

Paints the visual appearance of a feature.

Parameters:

	p	the QPainter to paint to
	x_pix	the pixel coordinate of the upper left corner of the rectangle where the feature should be painted
	y_pix	the pixel coordinate of the upper left corner of the rectangle where the feature should be painted
	x1_dna	the left most position that should be painted given as a dna coordinate relative the left side of the read.
	x2_dna	the right most position that should be painted given as a dna coordinate relative the left side of the read.

Implements FeatureGui.

Definition at line 168 of file featuregui.cpp.

References ChromatData::cagt_vec, chromatData(), QPainter::drawPolyline(), FeatureData::endPos(), ChromatData::gap_vec, QPainter::pen(), ChromatData::phd_vec, QBrush::setColor(), QPainter::setPen(), QPointArray::setPoint(), QBrush::setStyle(), TrapperVector< T >::size(), FeatureData::startPos(), and TrapperVector< T >::stlVector().

{



  QString str;
  QBrush brush;
  brush.setStyle( Qt::SolidPattern );
  brush.setColor( Qt::red );


  //     int numPoints = ( x2_dna - x1_dna +1)*2 ;
  int num_tot = chromatData()->cagt_vec[0].stlVector().size();
  int length = chromatData()->endPos() - chromatData()->startPos();

  int points_per_dna = num_tot/length;

  size_t numPoints = points_per_dna*( x2_dna - x1_dna +1);


  //Shift calc
  if ( x2_dna > chromatData()->endPos() || x1_dna < chromatData()->startPos()) {
//     cerr<<"*************** STRANGE "<<endl;
    cerr<<"Out of bounds error"<<endl;
    return;
  }
  int shift = 0;
  if ( chromatData()->phd_vec.size() > 0 &&
       chromatData()->gap_vec.size() > 0) {

   //Recalc shift



    if ( center > 0 && center < chromatData()->endPos()) {
      int shift_dna = chromatData()->gap_vec.stlVector()[ center ];
      if ( center >= shift_dna ) {
        //Should always be true unless we have end gaps which should be impossible...
        int phd_index = chromatData()->phd_vec.stlVector()[center - shift_dna ];
        shift = center*points_per_dna + points_per_dna/2 - phd_index;
      }
    }
  }



  double height_scale = double(height)/double(1600);

  QPointArray c( numPoints );
  QPointArray a( numPoints );
  QPointArray g( numPoints );
  QPointArray t( numPoints );

  for( size_t i = 0; i < numPoints; i++ ) {
    int index = i + points_per_dna*x1_dna;

    index -= shift;
    if ( index < 0 ) index = 0;
//    if ( index > chromatData()->cagt_vec[0].size() - 1 ) index = index > chromatData()->cagt_vec[0].size() - 1;
    if ( static_cast<size_t>(index) > chromatData()->cagt_vec[0].size() - 1 ) index = chromatData()->cagt_vec[0].size() - 1;

//     g.setPoint(i, i* width/points_per_dna + x_pix, y_pix + height - chromatData()->cagt_vec[0].stlVector()[index]*height_scale);
//     a.setPoint(i, i* width/points_per_dna + x_pix, y_pix + height - chromatData()->cagt_vec[1].stlVector()[index]*height_scale);
//     t.setPoint(i, i* width/points_per_dna + x_pix, y_pix + height - chromatData()->cagt_vec[2].stlVector()[index]*height_scale);
//     c.setPoint(i, i* width/points_per_dna + x_pix, y_pix + height - chromatData()->cagt_vec[3].stlVector()[index]*height_scale);
    c.setPoint(i, static_cast<int>(i* width/points_per_dna + x_pix), static_cast<int>(y_pix + height - chromatData()->cagt_vec[0].stlVector()[index]*height_scale));
    a.setPoint(i, static_cast<int>(i* width/points_per_dna + x_pix), static_cast<int>(y_pix + height - chromatData()->cagt_vec[1].stlVector()[index]*height_scale));
    g.setPoint(i, static_cast<int>(i* width/points_per_dna + x_pix), static_cast<int>(y_pix + height - chromatData()->cagt_vec[2].stlVector()[index]*height_scale));
    t.setPoint(i, static_cast<int>(i* width/points_per_dna + x_pix), static_cast<int>(y_pix + height - chromatData()->cagt_vec[3].stlVector()[index]*height_scale));
  }
  /*
    C = cyan
    A = green
    G = magenta
    T = red
  */
  /*
    normal:
    C = red
    A = green
    G = cyan
    T = magenta
  */
  /*
    reverse:
    C = magenta
    A = cyan
    G = green
    T = red
  */
  QPen origpen(p->pen());

  p->setPen(QPen(Qt::cyan));
  p->drawPolyline(c);
  p->setPen(QPen(Qt::green));
  p->drawPolyline(a);
  p->setPen(QPen(Qt::magenta));
  p->drawPolyline(g);
  p->setPen(QPen(Qt::red));
  p->drawPolyline(t);

  p->setPen(origpen);
  return;
}

ChromatData * ChromatGui::chromatData

(

)

[private]

Definition at line 163 of file featuregui.cpp.

References FeatureGui::m_data.

Referenced by paintMe().

{
    return dynamic_cast<ChromatData *>( m_data );
}

---

The documentation for this class was generated from the following files:

• featuregui.h
• featuregui.cpp

---
